PRODUCT SHEET:

Magnet Connector is a smart transportation system for fish food pellets from a vessel to a fish farm offshore.

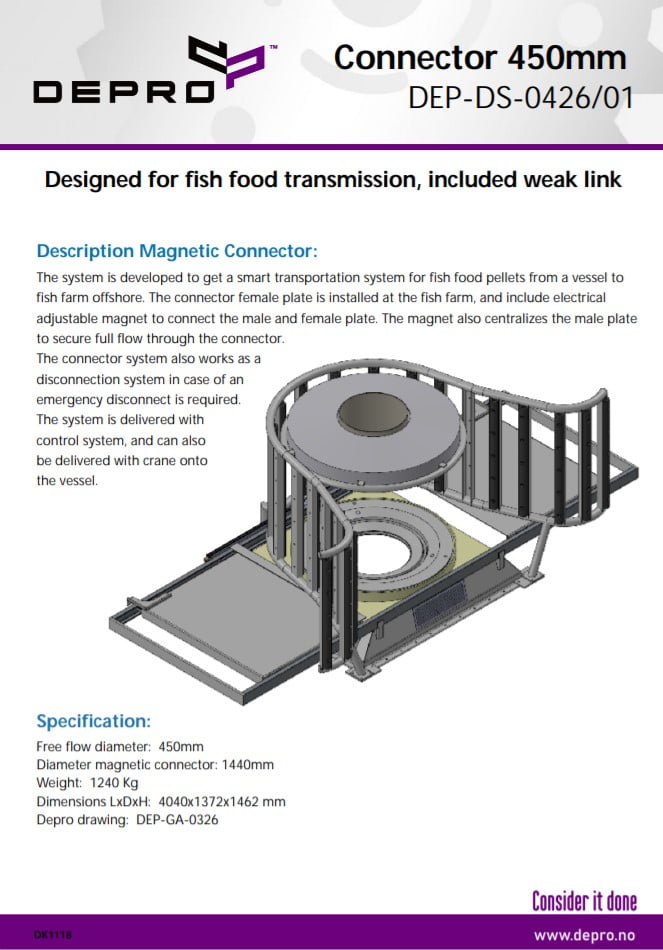

Connector 450mm

DEP-DS-0426/01

Description Magnetic Connector:

The system is developed to get a smart transportation system for fish food pellets from a vessel to fish farm offshore. The connector female plate is installed at the fish farm, and include electrical adjustable magnet to connect the male and female plate. The magnet also centralizes the male plate to secure full flow through the connector.

The connector system also works as a disconnection system in case of an emergency disconnect is required.
The system is delivered with control system, and can also be delivered with crane onto the vessel.

Specification:

  • Free flow diameter: 450mm
  • Diameter magnetic connector: 1440mm
  • Weight: 1240 Kg
  • Dimensions LxDxH: 4040x1372x1462 mm
  • Depro drawing: DEP-GA-0326
